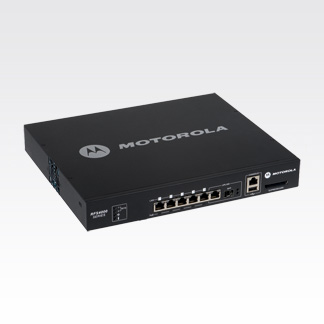

RFS4000 представляет собой полностью интегрированный контроллер беспроводных служб 802.11n, включающий точку доступа 802.11n (опционально), проводной коммутатор с пятью совмещенными портами POE, систему безопасности IPSEC VPN/брандмауэр/WIPS, сервер RADIUS и DHCP, механизмы определения местоположения и радиочастотной идентификации, систему обработки отказов 3G и т.д. Даная модель является оптимальным решением для не больших беспроводных сетей (до 36 точек доступа). Не смотря на то что RFS4000 самая младшая модель в линейке Моторолы, он имеет весь функционал своих старших собратьев.
ОСНОВНЫЕ ХАРАКТЕРИСТИКИ_______________________________________________________________________________
- поддержка до 36 точек доступа
- поддержка до 24 WiFI сетей
- до 500 мобильных пользователей
- резервирование: Активный/Активный, Активный/Резервный
- соответствует международным нормативам безопасности HIPAA и PCI
- слот для подключение 3G модема
- порты: 1xUpGi SFP, 5xGiEth c POE
ФУНКЦИИ И ПРИИМУЩЕСТВА________________________________________________________________________________
- Особенность Моторолы. Подход Моторолы к технологиям – «Суп отдельно, Мухи отдельно». То есть, есть радио часть (беспроводная передачи данных, и механизмов его администрирования и безопасности) и сервисы которые работают с помощью WiFI (билинг, 3G offload, сложные хот споты, и т.д.). Моторола делает высококачественный WiFi, а дополнительные сервисы (софт) рекомендует покупать у специализированных компаний занимающихся софтом. В следствии имеем высококачественную радио часть, без дополнительного своего софта и плохой рейтинг Гартнер.
- Динамическое куправление РЧ-ресурсами - SmartRF. Технология SmartRF позволяет автоматически рассчитывать требуемую мощность передачи, радиочастотный (РЧ) канал, принудительный роуминг для каждого порта доступа (ПД) в зависимости от уровня сигнала каждого мобильного Wi-Fi устройства (МУ), РЧ-интерференции, РЧ-шума, загруженности ПД, .
- Отказоустойчивость. Политика Моторолы в этом направлении позволяет за минимальные дополнительные вложения строить отказоустойчивые решения. Лицензии покупаются только на основной контроллер, резервный ставится без лицензий.
- Поддержка своих терминалов. При использовании WiFI оборудования Моторола с терминалами сбора данных Моторола появляется дополнительный функционал (оптимизация роуминга, сохранение энергии аккумулятора терминала)
- Беспроводная система обнаружения вторжений и защиты от них. Встроенная система IDS/IPS обеспечивает защиту от беспроводных атак благодаря использованию сенсорных возможностей точек доступа. Также дополнительно существует огромный комплекс по обеспечению беспроводной безопасности – Motorola AirDeafense
- Система определения местоположения в реальном времени (RTLS). Предлагает многофункциональные службы определения местоположения, обеспечивающие отслеживание корпоративных ресурсов в реальном времени благодаря поддержке 802.11, радиочастотной идентификации, а также систем определения местоположения сторонних производителей, таких, как AeroScout, Ekahau и Newbury Networks. Стандартизированная поддержка интерфейса EPC Global ALE для обработки и фильтрации данных всех активных и пассивных меток, а также интерфейса EPC Global LLRP для поддержки пассивных RFID-меток.
ПОЛНАЯ СПЕЦИФИКАЦИЯ__________________________________________________________________________________
PACKET FORWARDING |
|
802.1D-1999 Ethernet bridging; 802.11-.802.3 bridging; 802.1Q VLAN tagging and trunking; proxy ARP; IP packet steering-redirection |
|
Wireless LAN |
Supports 24 WLANs; multi-ESS/BSSID traffic segmentation; VLAN to ESSID mapping; auto assignment of VLANs (on RADIUS authentication); power save protocol polling; pre-emptive roaming; VLAN Pooling and dynamic VLAN adjustment; IGMP Snooping |
Bandwidth management |
Congestion control per WLAN; per user based on user count or bandwidth utilization; bandwidth provisioning via AAA server |
Layer 2 or Layer 3 deployment of access points |
|
Layer 3 Mobility (Inter-Subnet Roaming) |
|
IPv6 client support |
|
Thin Access Ports |
Supports 6 802.11a/b/g AP 300 thin access points for L2 or L3 deployment per; 6*/ 36** AP 650s per controller **; Legacy support*: AP100 for L2 deployments only |
Adaptive AP |
Supports adoption of 6 adaptive AP 51X1 802.11a/b/g and 36** 802.11a/b/g/n access points in adaptive mode per RFS 4000 Integrated Services Controller; multiple country configuration support; Legacy support*: AP 4131 Access Point conversion for L2 deployments only |
NETWORK SECURITY |
|
Role-based wired/wireless firewall (L2-L7) with stateful inspection for wired and wireless traffic; Active firewall sessions — 50,000 per RFS 4000 Integrated Services Controller; protects against IP Spoofing and ARP Cache Poisoning |
|
Access Control Lists (ACLs) |
L2/L3/L4 ACLs |
Wireless IDS/IPS |
Multi-mode rogue AP detection, Rogue AP Containment, 802.11n Rogue Detection, Ad-Hoc Network Detection, Denial of Service protection against wireless attacks, client blacklisting, excessive authentication/ association; excessive probes; excessive disassociation/ deauthentication; excessive decryption errors; excessive authentication failures; excessive 802.11 replay; excessive crypto IV failures (TKIP/CCMP replay); Suspicious AP, Authorized device in ad-hoc mode, unauthorized AP using authorized SSID, EAP Flood, Fake AP Flood, ID theft, ad-hoc advertising Authorized SSID |
Geofencing |
Add location of users as a parameter that defines access control to the network |
WIPS sensor conversion |
Supported on all dependent and Independent/ Adaptive Access Points |
Anomaly Analysis |
Source Media Access Control (MAC) = Dest MAC; Illegal frame sizes; Source MAC is multicast; TKIP countermeasures; all zero addresses |
Authentication |
Access Control Lists (ACLS); pre-shared keys (PSK); 802.1x/EAP—transport layer security (TLS), tunneled transport layer security (TTLS), protected EAP (PEAP); Kerberos Integrated AAA/RADIUS Server with native support for EAP-TTLS, EAP-PEAP (includes a built in user name/password database; supports LDAP), and EAP-SIM |
Transport encryption |
WEP 40/128 (RC4), KeyGuard, WPA—TKIP, WPA2-CCMP (AES), WPA2-TKIP |
802.11w* |
Provides origin authentication, integrity, confidentiality and replay protection of management frames for Motorola’s AP 300 access point |
IPSec VPN gateway |
Supports DES, 3DES and AES-128 and AES-256 encryption, with site-to-site and client-to-site VPN capabilities |
Secure guest access (Hotspot provisioning) |
Provides secure guest access for wired and wireless clients. built-in captive portal, customizable login/ welcome pages, URL redirection for user login, usage-based charging, dynamic VLAN assignment of clients, DNS white list, GRE tunneling of traffic to central site*, API support for interoperabilty with custom web portals* support for external authentication and billing systems |
Wireless RADIUS Support (Standard and Motorola Vendor Specific Attributes) |
User Based VLANs (Standard) MAC Based Authentication (Standard) User Based QoS (Motorola VSA) Location Based Authentication (Motorola VSA) Allowed ESSIDs (Motorola VSA) |
NAC support with third party systems from Microsoft, Symantec and Bradford |
|
REAL TIME LOCATIONING SYSTEM (RTLS)* |
|
RSSI based triangulation for Wi-Fi assets |
|
Tags supported |
Ekahau, Aeroscout, Gen 2 Tags |
QUALITY OF SERVICE |
|
Wi-Fi Multimedia extensions |
WMM-power save with TSPEC Admission Control; WMM U-APSD |
IGMP snooping |
Optimizes network performance by preventing flooding of the broadcast domain |
SIP Call Admission Control |
Controls the number of active SIP sessions initiated by a wireless VoIP phone |
802.11k |
Provides radio resource management to improve client throughput (11k client required) |
Classification and marking |
Layer 1-4 packet classification; 802.1p VLAN priority; DiffServ/TOS |
SYSTEM RESILIENCY AND REDUNDANCY |
|
Active:Standby; Active:Active and N+1 redundancy with access port and Wireless Clients load balancing; Critical resource monitoring |
|
Virtual IP*: Single virtual IP (per VLAN) for a switch/contoller cluster to use as the default gateway by mobile devices or wired infrastructure. Seamless fail-over of associated services e.g. DHCP Server. |
|
SMART RF: Network optimization to ensure user quality of experience at all times by dynamic adjustments to channel and power (on detection of RF interference or loss of RF coverage/neighbor recovery). Available for both thin APs and Adaptive APs. |
|
Dual Firmware bank supports Image Failover capability |
|
SYSTEM EXTENSIBILITY |
|
ExpressCard™ Slot: Driver support for 3G wireless cards for WAN backhaul • AT&T (NALA) – HYPERLINK “http://www.wireless.att.com/businesscenter/ sierra-wireless-aircard-890/index.jsp?skuId=sku9557600025” Sierra Wireless AirCard® 890, Option GT Ultra Express • Verizon (NALA) – V770 Express Card • Sprint (NALA) - Sprint Novatel Merlin C777 Express card • Rogers Wireless (Canada) – Sierra Wireless AirCard® 503 • Vodaphone (EMEA) – Novatel Merlin XU870 • Vodaphone (EMEA) – Vodaphone E3730 3G Expresscard • Telstra (Australia) – Sierra Wireless AirCard® 503, Telstra Turbo 7 series Expresscard (Aircard 880E) • General Use – Novatel Merlin XU870, Option GE 0302, Sierra Wireless AirCard® 504 |
|
MANAGEMENT |
|
Command line interface (serial, telnet, SSH); secure Web-based GUI (SSL) for the wireless switch and the cluster; SNMP v1/v2/v3; SNMP traps—40+ user configurable options; Syslog; Firmware, Config upgrade via TFTP, FTP & SFTP (clients); simple network time protocol (SNTP); text-based switch configuration files; DHCP (client/server/relay), switch auto-configuration and firmware updates with DHCP options; multiple user roles (for switch access); MIBs (MIB-II, Etherstats, wireless switch specific monitoring and configuration); Email notifications for critical alarms; MU naming capability |
|
PHYSICAL CHARACTERISTICS |
|
Form factor |
1U Rack Mount Tray available for the RFS4010 2U Rack Mount Tray available for the RFS4011 |
Dimensions |
RFS 4010: 1.75 in. H x 12 in. W x 10 in. D 44.45 mm H x 304.8 mm W x 254.0 mm D Antenna facade: 289.2mm x 340mm x 20.5mm |
Weight |
RFS 4010: 4.75 lbs./2.15 kg RFS 4011: 4.9lbs Antenna facade: 1.45lb |
Physical interfaces |
1x Uplink Port -10/100/1000 Cu/ Gigabit SFP interface 5x 10/100/1000 Cu Ethernet Ports, 802.3af and 802.3at Draft 1x USB 2.0 Host 1x ExpressCard™ Slot 1x Serial Port (RJ45 style) |
Antenna Connections |
RFS 4011: RP-SMA |
MTBF |
>65,000 Hours |
POWER REQUIREMENTS |
|
AC input voltage |
100-240 VAC 50/60Hz |
Operating Voltage |
44 to 57 VDC |
Operating Current |
2.5A(max) @48 VDC or 2.2A(max) @ 54 VDC |
Max Power Consumption |
120W for RFS 4010, 150W for RFS 4011 |
USER ENVIRONMENT |
|
Operating temperature |
32° F to 104° F /0° C to 40° C |
Storage temperature |
-40° F to 158° F/-40° C to 70° C |
Operating humidity |
5% to 85% (w/o condensation) |
Storage humidity |
5% to 85% (w/o condensation) |
Heat dissipation |
95 BTU/hr for RFS 4010, 190 BTU/hr for RFS 4011 |
Max Operating Altitude |
3000m |
REGULATORY |
|
Product safety |
UL / cUL 60950-1, IEC / EN60950-1 |
EMC compliance |
FCC (USA), Industry Canada, CE (Europe), VCCI (Japan), C-Tick (Australia/New Zealand) |
RECOMMENDED ENTERPRISE MOBILITY SERVICES |
|
Customer Services |
Service from the Start Advance Exchange Support |
